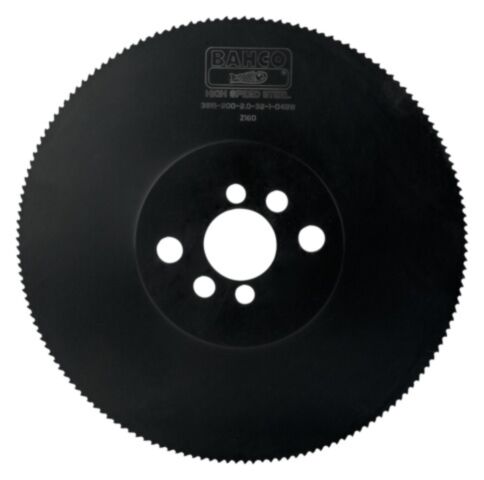

Circular cold saws hss Bahco

• High-speed steel (HSS) circular saw blades for cutting steel, iron, metal and light metal applications
• To be used in both manual and automated machines
• Hole pattern:
• 2 / 8.5 - 45
• 2 / 9 - 50
• 2 / 11 - 63
• Example: 2/8.5-45 = 2 pin holes Ø8.5mm positioned within a circle of 45mm
• BW is generally for cutting tubes and profiles while C is applicable for cutting solid materials
• Example: -03BW = Tooth pitch 3mm with BW tooth shape
• Packed in an easy-to-use cardboard pack also used as tooth protection
• High-Speed Steel Circular saw with Steam-treated surface
• Flexibility for usage in both manual and automated machines
• Tooth Shape BW is mainly for cutting tubes and profiles, the tooth is alternately bevelled at 45° and breaks the chip in two which guarantees good chip clearance
• Tooth shape C is used for solid sections and thick pipes, every second tooth has two chamfers on each side while the others are without chamfer
• A useful rule of thumb is that at least three teeth should be engaged at any time
